Robotic welding Solution
In robotic welding, the welding process is automated by the use of robots, which perform and handle the welding based on a program, which can be reprogrammed to suit the intended project. Robotic welding is a highly advanced version of automated welding, in which machines conduct the welding, but welders still control and supervise the process.
The use of robotic technology allows for precise and quick results, less waste, and greater safety. The robots are capable of reaching otherwise inaccessible locations and can perform complicated and precise weld lines and welds more quickly than in manual welding. This frees time for manufacturing and allows for more flexibility.
With the range of machinery available, robots can adapt to a wide variety of welding processes including arc, resistance, spot, TIG, laser, plasma, and MIG welding. The main focus is on creating the right welding programs and jigs into the welding application.

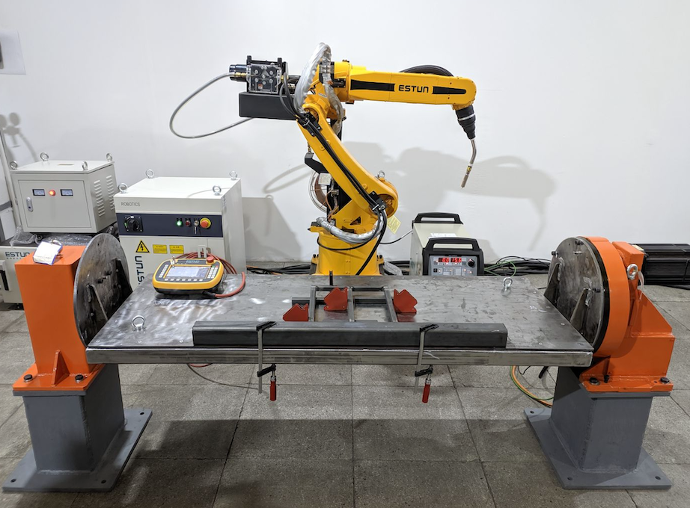

CO2/MIG/MAG Gas Metal Arc Welding Workstation
ESTUN hollow wrist robots reduce interference of cables. High performance welding
gun, ESTUN welding power source and ESTUN Mate welding software package can
make an ideal integrated welding workstation. ESTUN arc welding stations have
characteristics of super spatter-free, good weld bead appearance, and low heat input
to base material. They can support sophisticated welding functions such as pre weld
data setting , pendulum welding, intermittent welding, etc. ESTUN robotic arc welding
stations can be widely used in steel furniture, automobile parts, electric bike, motorcycles,
fitness equipment, medical equipment, elevators, agricultural machinery, aluminum
film plate and other industries.
TIG Argon Arc Welding Workstation
The workstation combines ESTUN robots with domestic leading pulse TIG
welding power sources, and achieve fast data exchange between welder and
controller based on self-developed ESTUN Mate arc welding software package,
The workstation meets welding needs for sheet and yttrium with self-fused no
spark argon gas arc welding function and multi-shape impulse filler-metal argon
gas arc welding function.
Spot Welding
ESTUN spot welding robot is equipped with ESTUN high speed servo motor to
realize fast, agile and precise control. High load capacity of ESTUN spot welding
robots cover a variety of spot welding holders.
With IPC, it is possible to control the system via Ethernet in real time, and carry
out large-scale pipelining with single or multiple robots. ESTUN Spot welding
can be applied to automobile and parts welding line.
