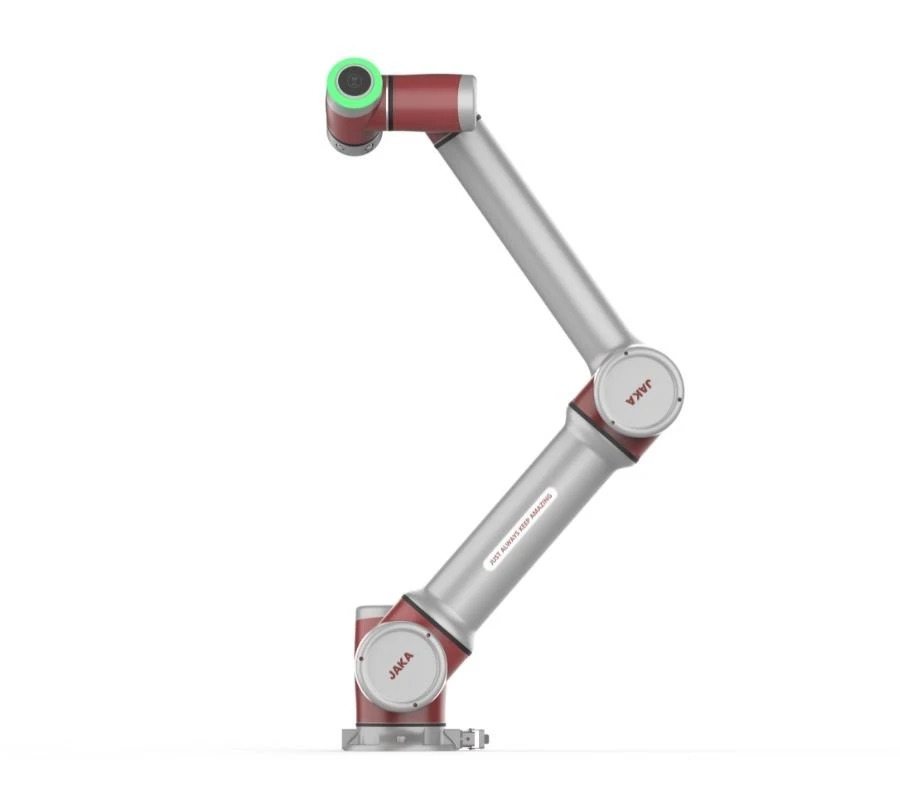

JAKA Zu 35 Collaborative Robot

• Brand
  • Jaka
• Working Radius
  • 2000 mm
• Payload
  • 35 kg
• Axis
  • 6
• IP Specification
  • IP65
• Repeatability
  • ±0.05mm
• Weight
  • 105 kg
• Power
  • 500 W
• Power Supply
  • 100–240VAC, 50–60Hz
• Temperature Range
  • 0-50℃
• Installation
  • Floor, Wall, Celling
• Arm Tool I/O
  • Digital I/O x2, Analog Input x2, End IO Module x2, (24/12/48V), EtherCAT
• Cabinet Tool I/O
  • 10 Digital Inputs, 10 Digital Outputs, 10 Safety Digital Inputs, 10 Safety Digital Outputs, HSI High-Speed Input Interface, 2 Emergency Stop Inputs, 2 Protective Stop Inputs
