RI WD Closed Dual Hanging – Two-Station Welding Cell with Overhead Robot
A two-station closed cell with the robot hanging from an overhead track: more room for large parts, less floor space used.
- Overhead track
- 2 stations
- 2.7 × 1.9 × 2.4 m
- ±0.03 mm
International delivery · Installation, training and technical support
The robot works from above. The floor stays free for your parts.
A closed welding cell with two stations and a cobot mounted upside down on an overhead travelling track. The robot reaches the part from above and from the sides, so vertical, inclined and curved seams need fewer part repositionings.
Large parts, awkward angles, limited floor space
Large structural parts have seams in every direction, and floor-mounted robots take up exactly the space the parts need.
Seams that are hard to reach
Vertical, inclined and curved seams force you to turn the part several times.
No room on the floor
In a crowded workshop every square metre counts.
Robot mounted above
The inverted cobot travels on the overhead track and reaches the seams from above.
Reaches every seam, from above

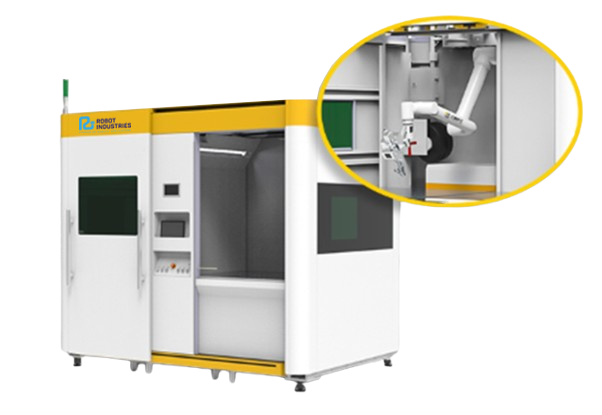

Robot on an overhead track
The cobot is mounted upside down on a travelling track at the top of the cell and moves between the two stations.
- More free space under the robot
Welding in any position
Vertical, inclined and curved seams with stable quality; the torch angle is compensated automatically.
- Straight, circular, fillet, butt and lap welds
Two stations, no waiting
The operator loads one station while the robot welds on the other.
- Continuous work in series
Teach the path by hand, no code
The operator guides the arm with the foldable handle; a force sensor records the path with ±0.05 mm positioning accuracy.
- Works on curved surfaces and in narrow spaces
Closed cabin, clean air
Arc-filtering windows, fume and dust extraction and an external emergency stop button.
- Panel tilted 15° for standing or seated work
Made for large and complex parts
Large structural parts
Beams, frames and brackets with seams in several directions.
Fewer part turnovers
Workshops with little floor space
Robotic welding without giving up floor space to the robot.
The floor stays free
Complex assemblies
Assemblies with vertical, inclined and curved seams.
Stable quality at any angleUp and running in 4 simple steps
Loading station A
The operator fixes the part on the first station.
Teaching the seam
Guide the arm with the handle or choose a saved program.
Welding on A, loading B
The cobot welds on station A while the operator prepares station B.
Alternating, without stops
The cobot moves to station B and the finished part is unloaded from A.
Floor-mounted robot or RI WD Closed Dual Hanging?
| Floor-mounted robot | RI WD Closed Dual Hanging | |
|---|---|---|
| Floor space | The robot base takes floor space | Robot above, floor free for parts |
| Access to seams | Mostly from the side | From above and from the sides |
| Vertical and curved seams | The part is turned often | Automatic torch angle compensation |
Technical specifications
| Arm reach options | 600 / 900 / 1300 / 1400 mm |
|---|---|
| Repeatability | ±0.03 mm |
| Hand-guiding accuracy | ±0.05 mm |
| Welding modes | Autonomous planning, circumferential, weaving, intermittent, fillet, multi-layer multi-pass |
| MIG/MAG | 350 A / 500 A |
|---|---|
| Laser | 1500 / 2000 / 3000 W |
| Cobot | RI or JAKA |
| Materials | Carbon steel, stainless steel, aluminium |
| Dimensions | 2.7 × 1.9 × 2.4 m |
|---|---|
| Workstations | 2, robot on an overhead track |
| Protection | IP54 |
| Air | Built-in fume and dust extraction |
| Safety | Arc-filtering windows, external emergency stop |
Which closed cell fits you?
| RI WD Closed | RI WD Closed Dual | RI WD Closed Dual Hanging | |
|---|---|---|---|
| Format | Single-station cabin | Two-station cabin | Two stations, robot on an overhead track |
| Cabin size | 1.7 × 1.9 × 2.4 m | 2.7 × 1.9 × 2.4 m | 2.7 × 1.9 × 2.4 m |
| Ideal for | Precision welding in a compact footprint | Series production, medium and thick plates | Large parts, seams at difficult angles |
| Robot idle time | Waits while the part is loaded | Welds while the other station is loaded | Welds while the other station is loaded |
| Welding processes | MIG/MAG 350 / 500 A · Laser 1.5–3 kW | MIG/MAG 350 / 500 A · Laser 1.5–3 kW | MIG/MAG 350 / 500 A · Laser 1.5–3 kW |
| Cobot | RI or JAKA | RI or JAKA | RI or JAKA |
| See this station → | See this station → | You are here |
What customers ask us
How much does the RI WD Closed Dual Hanging cost?
The price depends on the configuration: cobot, welding source (MIG/MAG or laser) and options. Send us a drawing of your part and we will send you an offer.
Do I need a robot programmer?
No. The operator guides the arm by hand and chooses the parameters from the WPS library. We train your team at commissioning.
Do I need a separate fume extraction system?
No. Fume and dust extraction is built into the cabin.
Why a hanging robot?
Mounted on the overhead track, the robot leaves the floor free and reaches the seams from above, which helps with large parts and awkward angles.
What is the difference from the RI WD Closed Dual?
Both have two stations and the same cabin size. In the Hanging version the robot travels on an overhead track, for large parts and seams in several directions.
Which materials can it weld?
Carbon steel, stainless steel and aluminium alloys, with ready parameters in the WPS library. A laser source is available for faster seams on thinner material.
Do you deliver and install abroad?
Yes. We deliver internationally and provide technical support and integration into your production.
Can you check it on my parts?
Send us a drawing or a sample; we check the seams and recommend the right configuration.
Do you have large parts with hard-to-reach seams?
Send us a drawing of your part. We check how the robot reaches every seam and send you an offer.
10 years of experience · 500 robots installed · 1000+ clients
Not ready for a quote yet? Book a free evaluation of your welding process.
Request a quote for the RI WD Closed Dual Hanging
